Bulkhead Electrical Terminal Fitting - Fuel Pump Power Supply
Regular price£16.99
- In stock, ready to ship
- Secure checkout
Bulkhead Electrical Supply Fittings
Select the bulkhead fittings based on your requirement.
Estimated total: Loading...

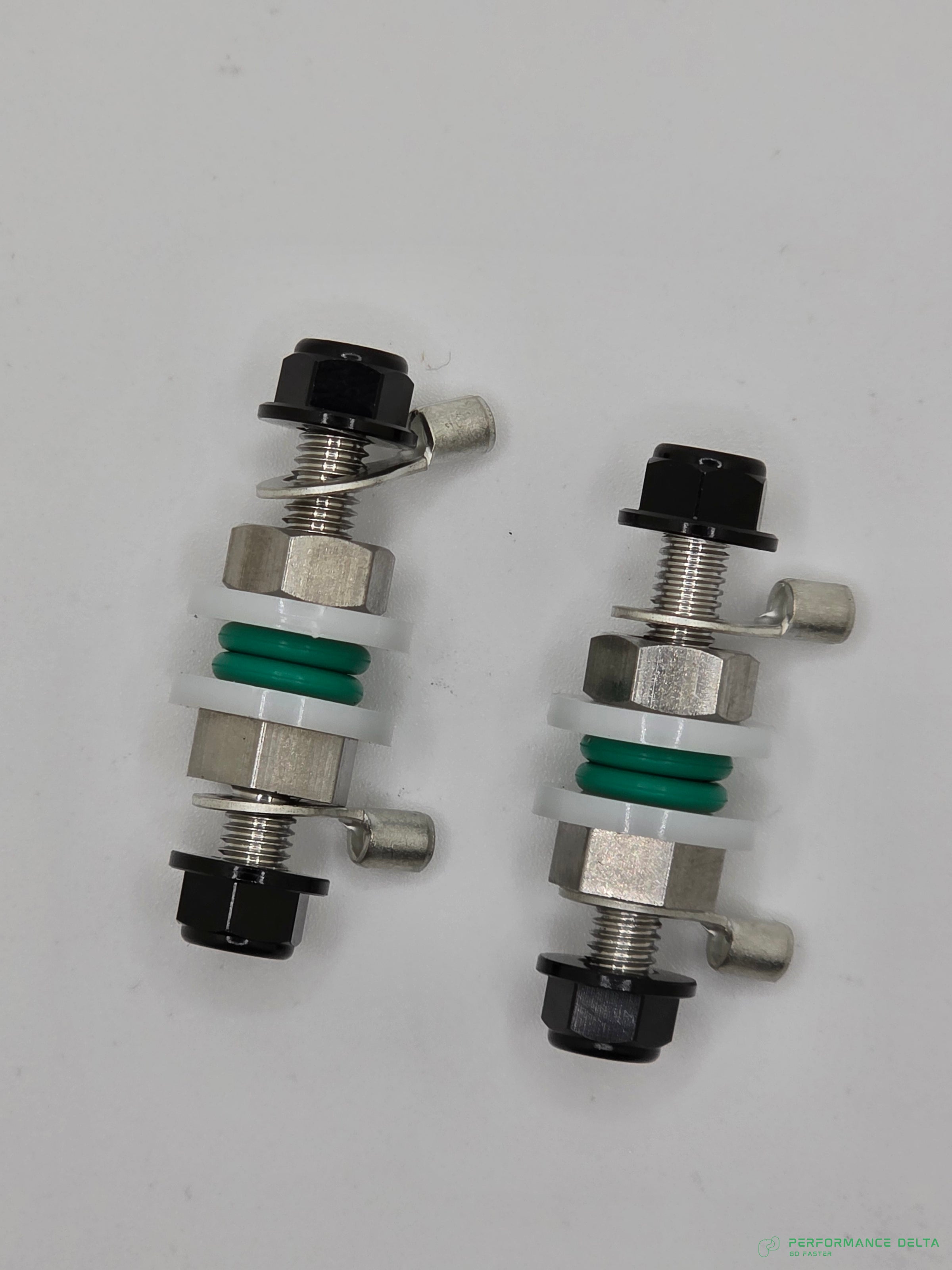

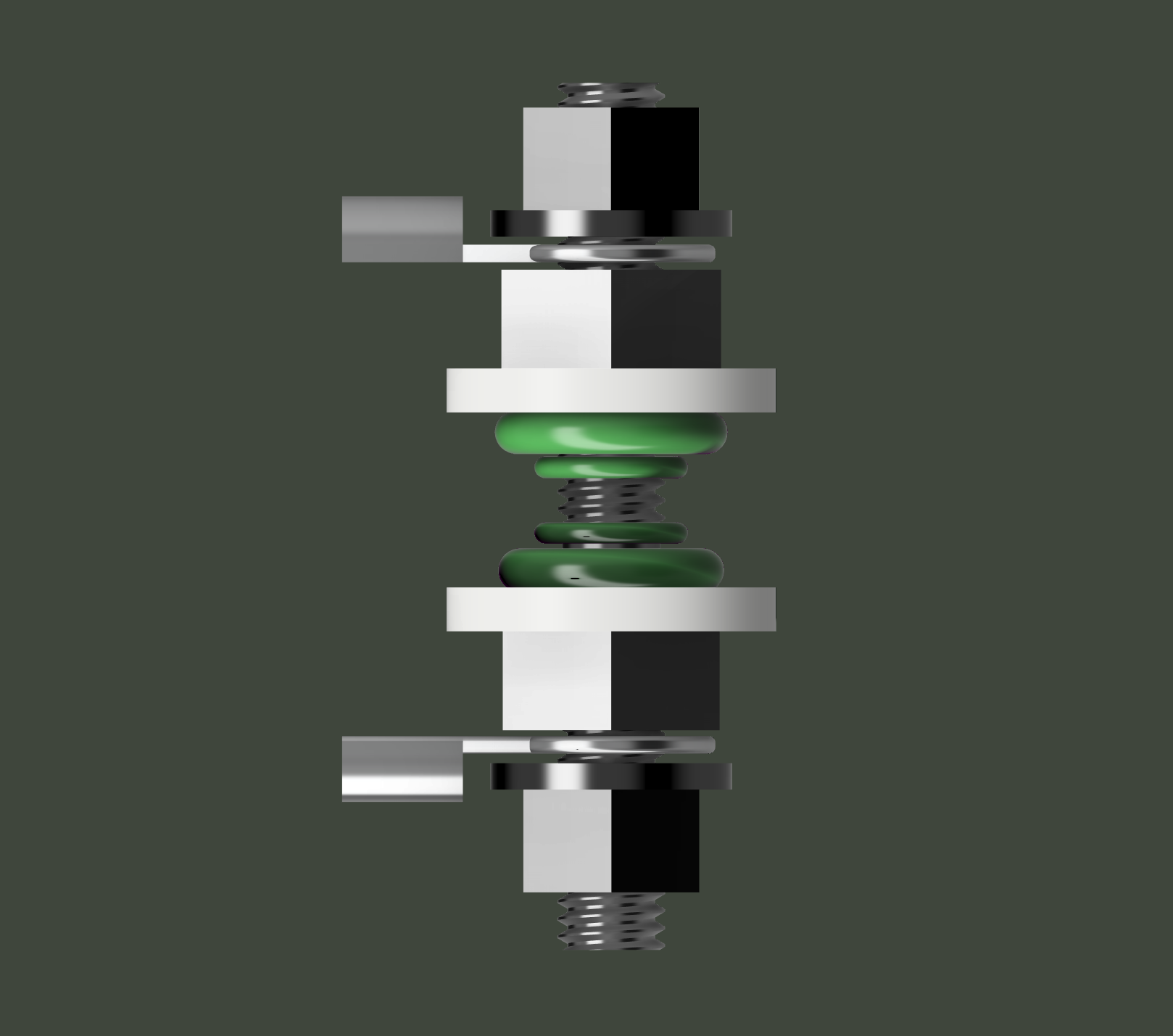

Terminal pack for positive and negative electrical bulkhead passthrough. Commonly used for fuel pumps and fuel level senders. Electrical stud terminals with a fixed offset, 10mm hex collar.
Suitable for fuel tanks, fuel top hats, fuel cells, catch tanks, and other sheet materials, such as firewalls and is a great low-cost option for those who want to DIY build their own solution.
The Technical Stuff:
- Total length: 45mm
- Diameter: 5mm
- Total protrusion length into tank: 25mm
- Usable thread length: 18.5mm
- Total protrusion outside of tank: 15.5mm
- Usable thread length: 10.5mm
- Bolt diameter: M5
- Nylon electrical isolation diameter: 15mm
- Fuel-safe FKM O-Rings
- Material: Stainless CNC-machined terminal stud, stainless securing nuts.
- Terminal Nuts: Nyloc flanged aluminium - black anodised.
- Ring terminals: Uninsulated ring terminals, tin-plated - can be crimped or soldered.
- Max current: 60 Amps
What you get:
- 2 terminals, associated nuts and FKM o-rings.
- Terminals supplied depend on the terminal pack selected:
- 4 ring terminals to support 1.5mm²-2.5mm² for fuel pump.
- 4 ring terminals to support 0.5mm²-1.5mm² for fuel level sender.
