RX-8 to MX-5 / Miata NC Knuckle Conversion

£1,050.00
/
  • Stronger RX-8 hubs & bearings
  • Direct fit to the MX-5 NC
  • Genuine SKF bearings
  • Low-corrosion Japanese parts
  • Low stock - 2 items left
  • Secure checkout

RX-8 to MX-5 NC Knuckle Conversion Builder

Build your RX-8 rear hub conversion package and select any optional upgrades.

Estimated total: Loading...

Liquid error (snippets/image-element line 113): invalid url input

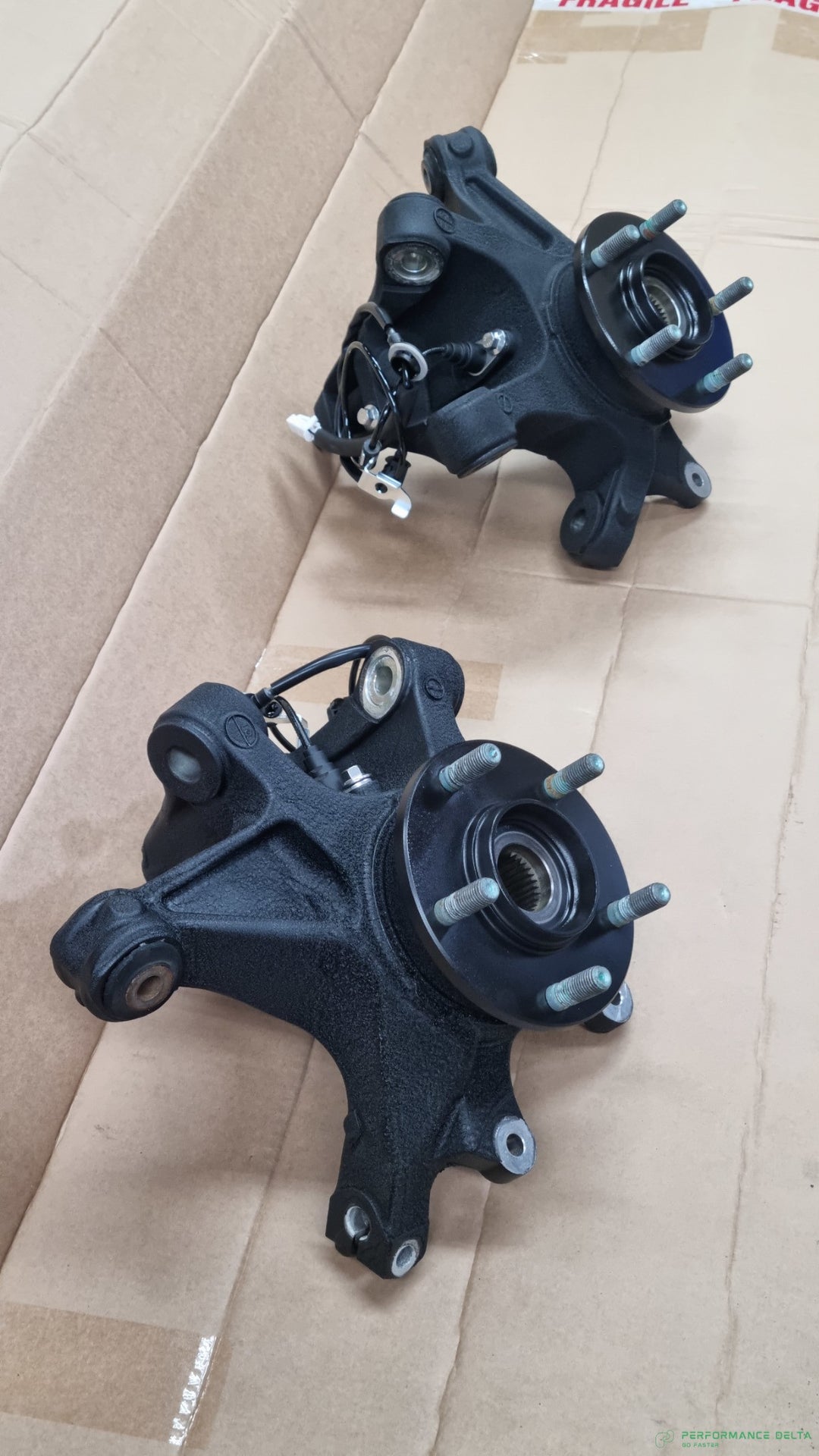

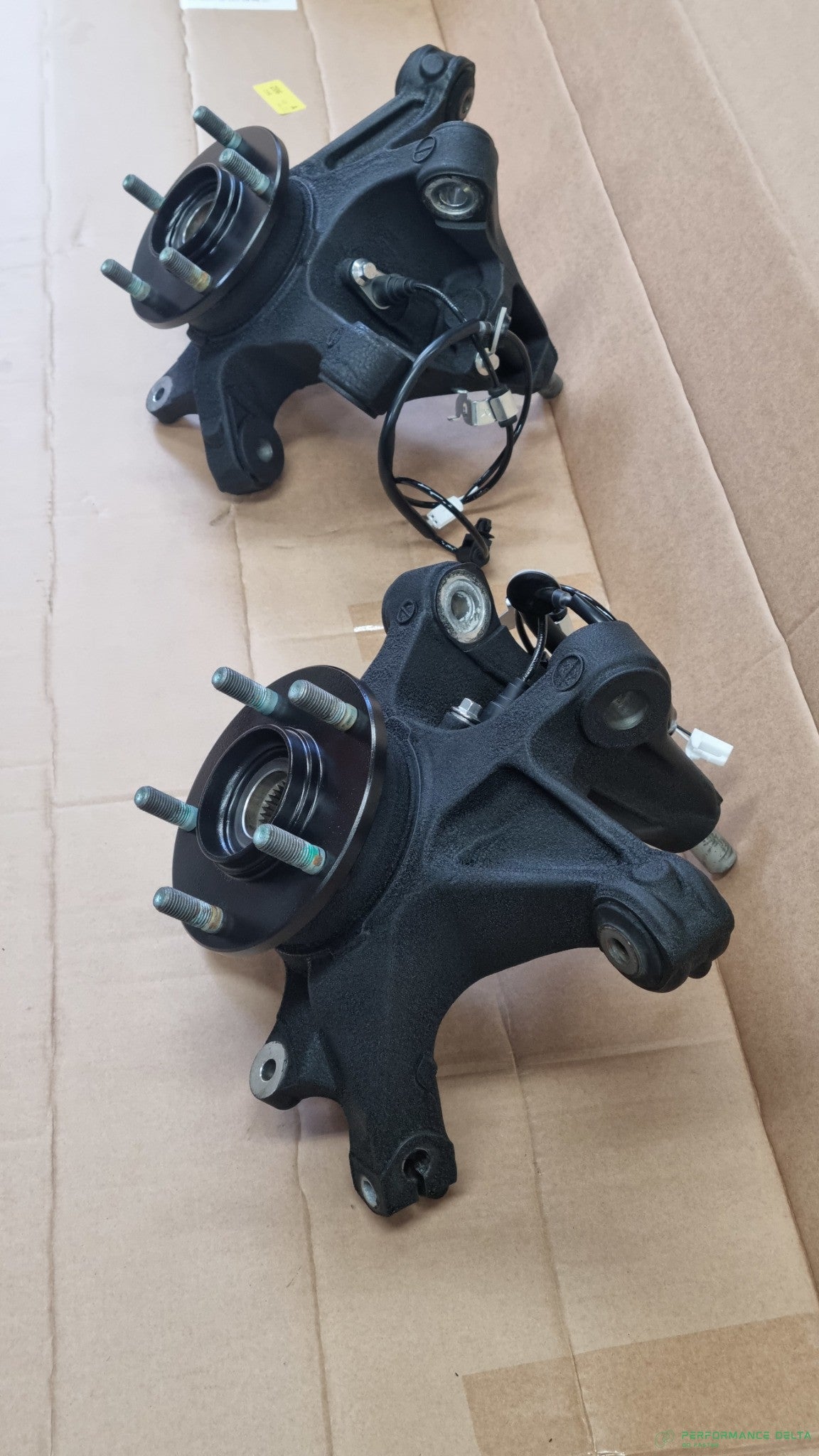

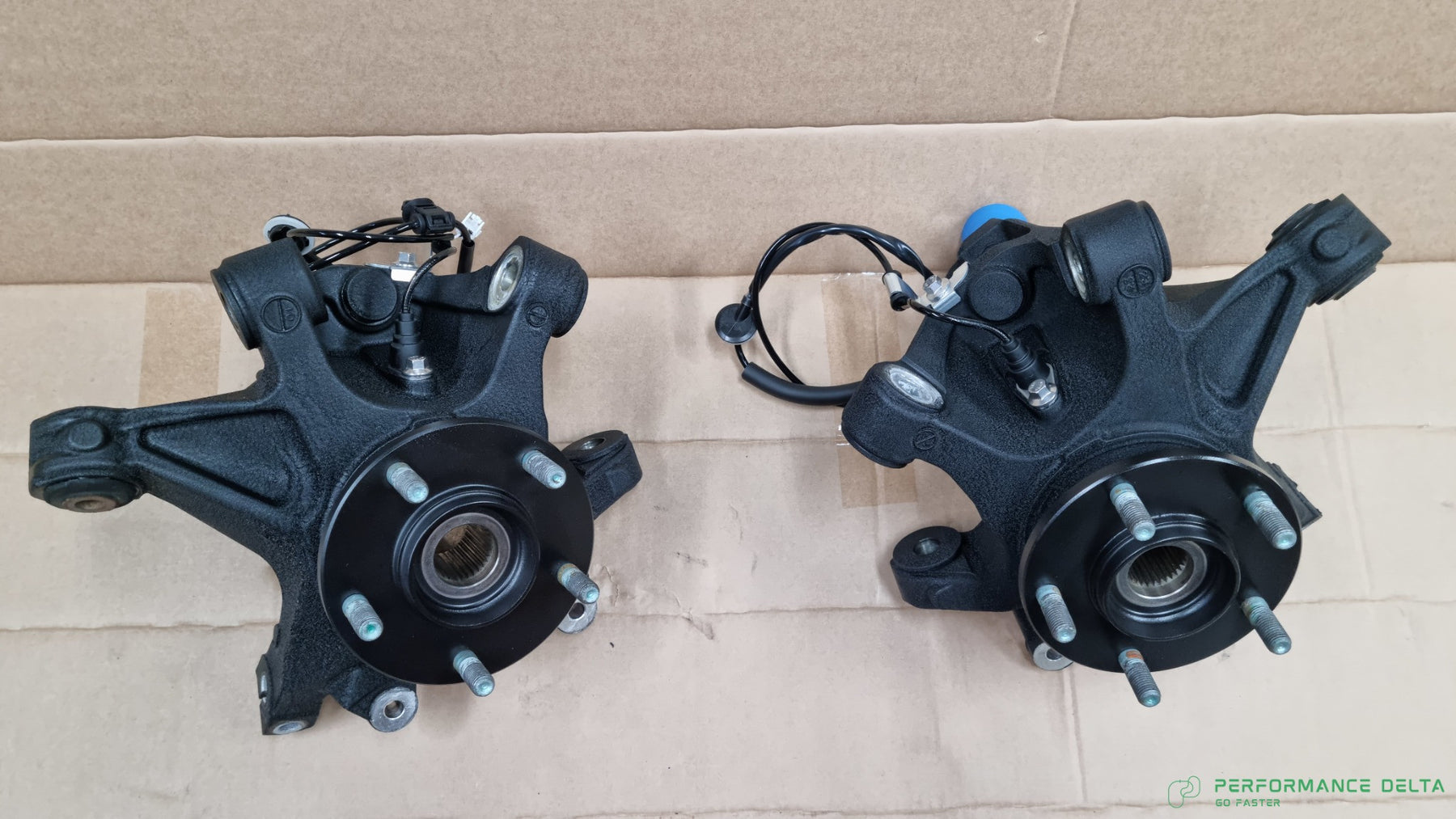

RX-8 to MX-5 / Miata NC Knuckle Conversion
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 2
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 3
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 4
RX-8 rear knuckle with spherical bearing – MX-5 NC knuckle conversion
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 6
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 7
RX-8 to MX-5 / Miata NC Knuckle Conversion
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 2
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 3
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 4
RX-8 rear knuckle with spherical bearing – MX-5 NC knuckle conversion
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 6
RX-8 to MX-5 / Miata NC Knuckle Conversion – view 7

Overview

RX-8 to MX-5 / Miata NC rear knuckle conversion kit – the best-value fix for the NC's well-known weakness: rear hub bearings and flanges that collapse under hard driving. The RX-8 knuckle has a larger bearing housing, larger bearings and a thicker flange, giving a much stronger rear hub for track and fast-road use.

The conversion needs a hybrid pair of driveshafts using the RX-8 automatic's outer joint, which isn't available in the UK – so we import the correct parts from Japan and supply everything for a direct fit. Every imported part is inspected, stripped, vapour blasted and rebuilt before dispatch, and a full technical guide walks you through installation.

Specifications

FitsMazda MX-5 / Miata NC, 2005–2015
PartRear Knuckle
Material7075-T6 Aluminium
ManufacturingCNC Machined
FinishRaw
Pack sizePair (left and right)
ReplacesStandard MX-5 NC rear knuckles and hubs

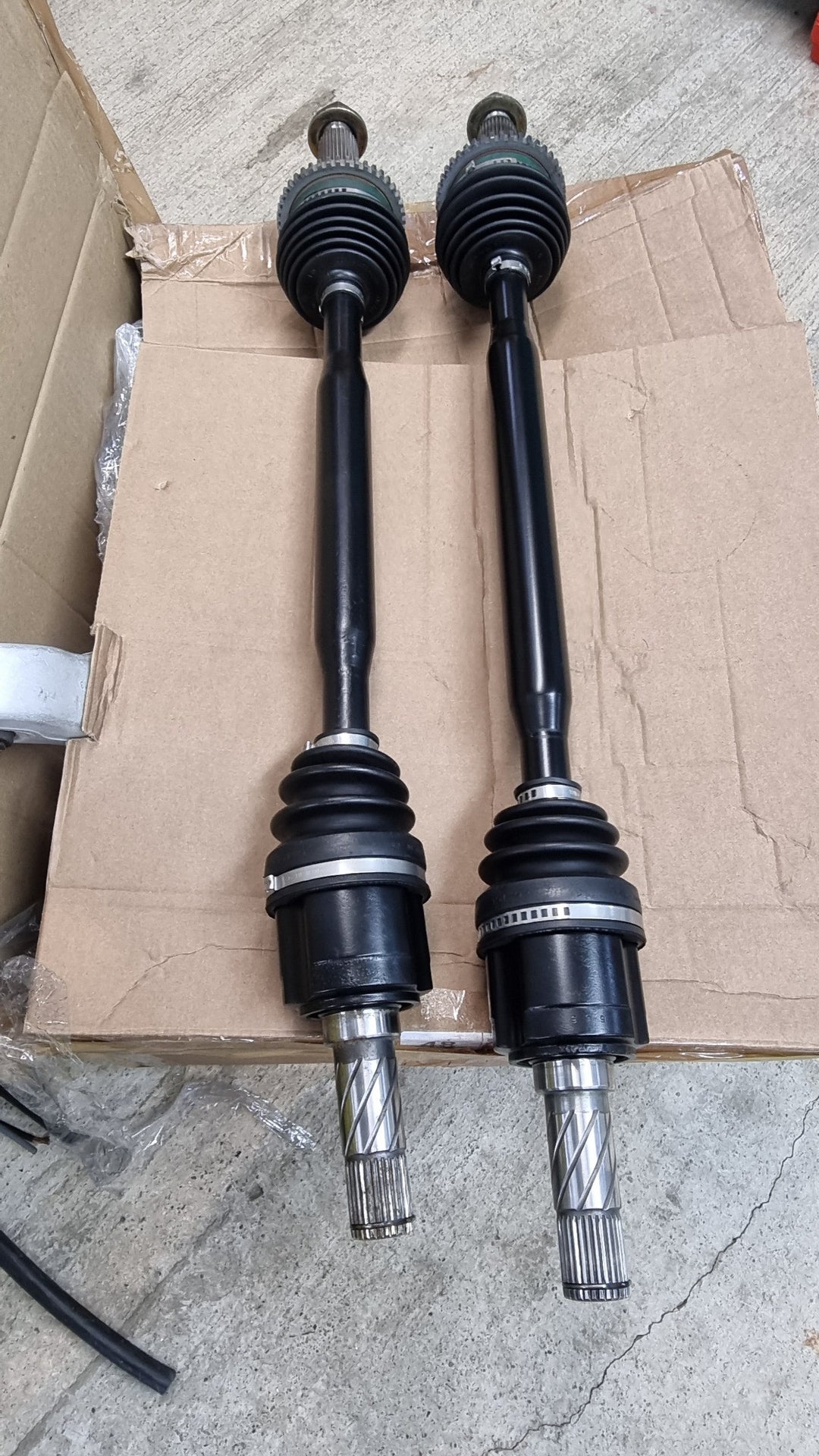

  • 2 × RX-8 / MX-5 hybrid driveshafts (pre-used, imported from Japan)
  • 2 × RX-8 rear knuckles (pre-used, imported from Japan)
  • 2 × MX-5 ABS spacer adapters
  • 2 × new MX-5 ABS sensors (non-genuine)

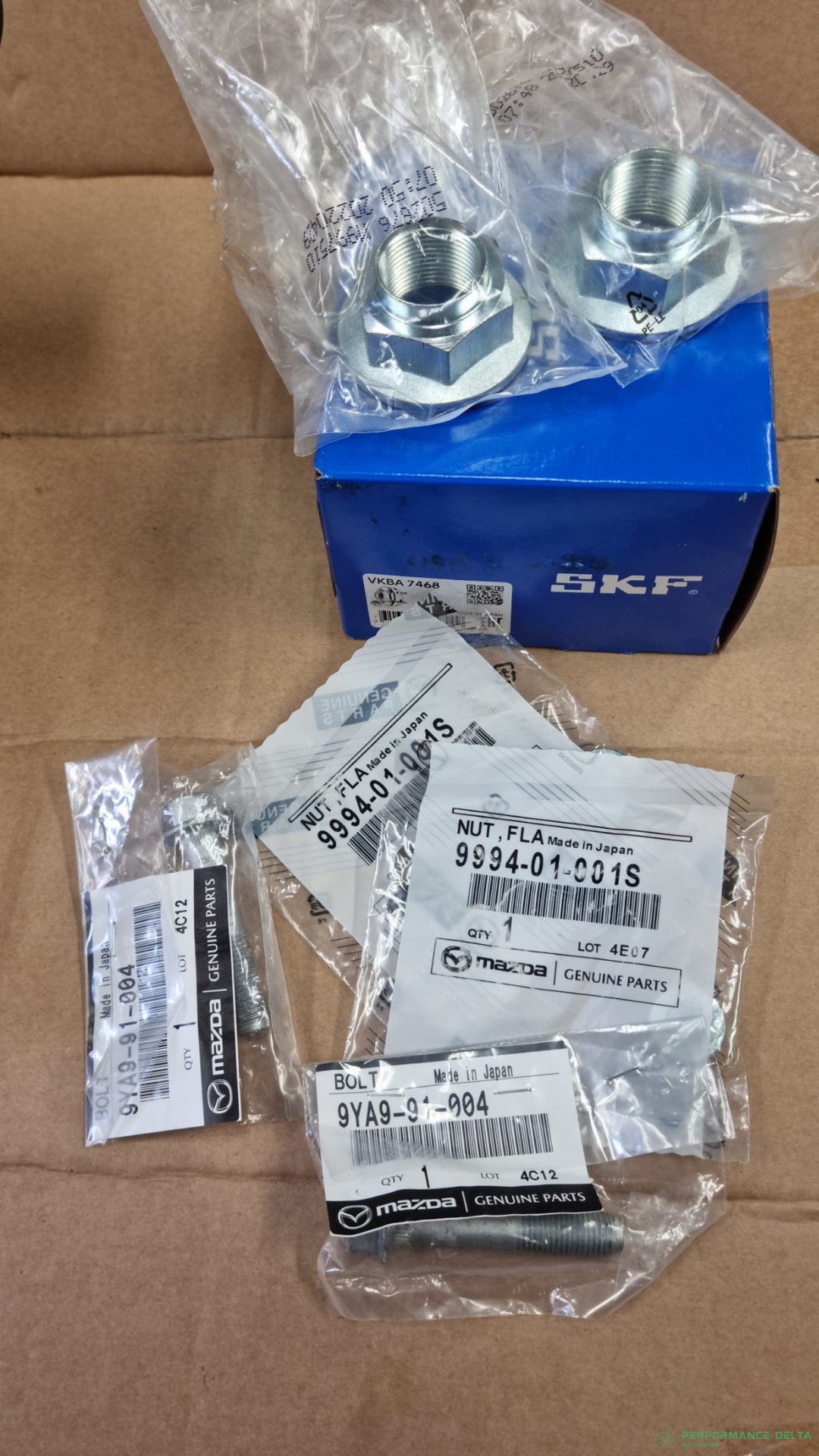

  • 2 × new RX-8 rear wheel bearings (genuine SKF, made in Japan)
  • 2 × RX-8 wheel hubs (pre-used) with new genuine Mazda wheel studs – extended studs optional
  • 2 × new genuine Mazda toe pinch bolts with nuts

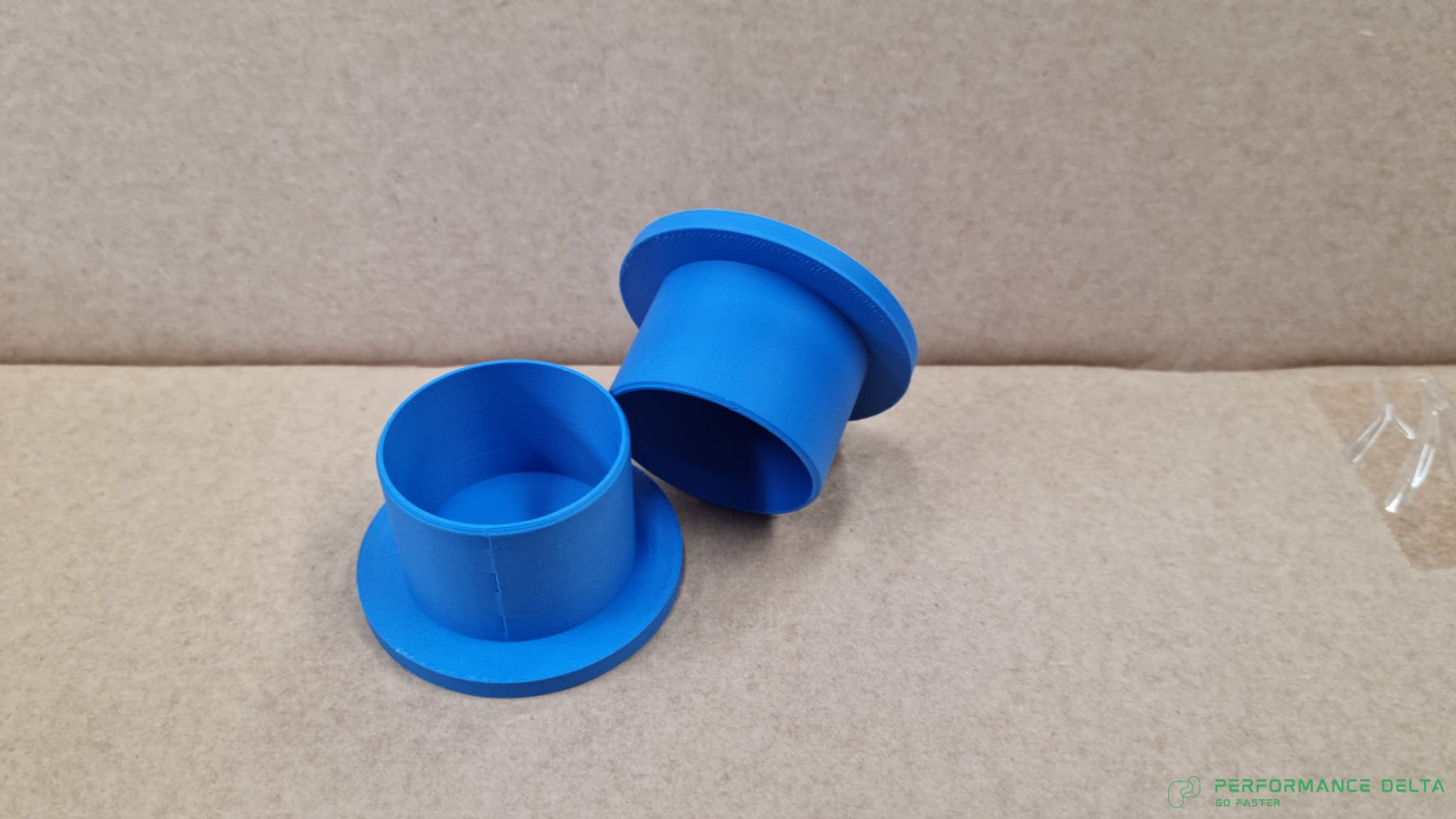

  • 2 × diff bungs, to limit fluid loss and dirt during the conversion

We import the knuckles as well as the driveshafts from Japan. UK knuckles often suffer heavy corrosion from winter road salt, while Japanese knuckles look almost new once cleaned up, with very little corrosion.

The standard rubber trailing arm bush is removed during strip-down and not refitted, so the knuckles are ready for your own bushes. We can supply spherical (pillowball) or poly bushes on request – please let us know before paint and reassembly.

Read the technical guide

We do our best to process and ship orders within 1-2 business days (Monday-Friday, excluding holidays). Delivery time depends on location. Below are examples:

UK: 24hrs

Europe: 3-5 days

America and Canada: 5-7 days

Australia: 5-7 days

If you have any questions about your order, you can reach out to our Customer Service team and we will be happy to help.


We Guarantee Everything We Make

If you are not satisfied with one of our products at the time you receive it, or if one of our products does not perform to your satisfaction, please get in touch and we'll make it right. We've been trading for over 2 years and not once had return due to fault or poor quality.
